Product Detail

PD2401F 24V


POE Splitter

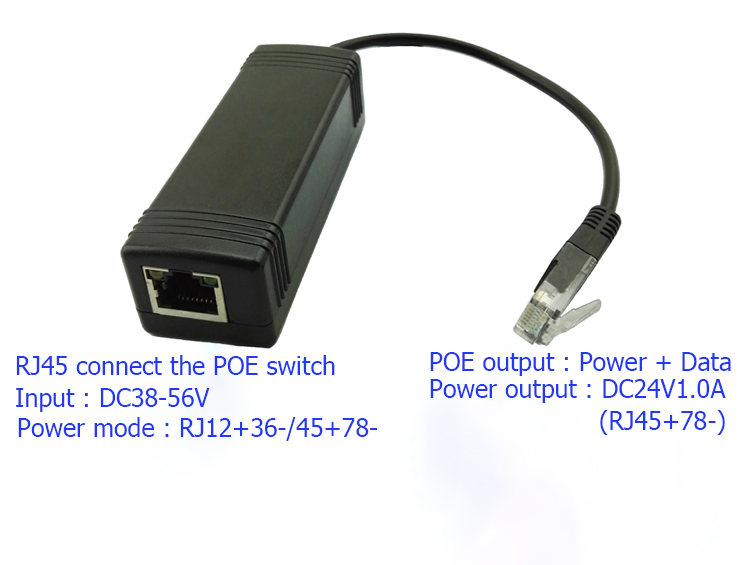

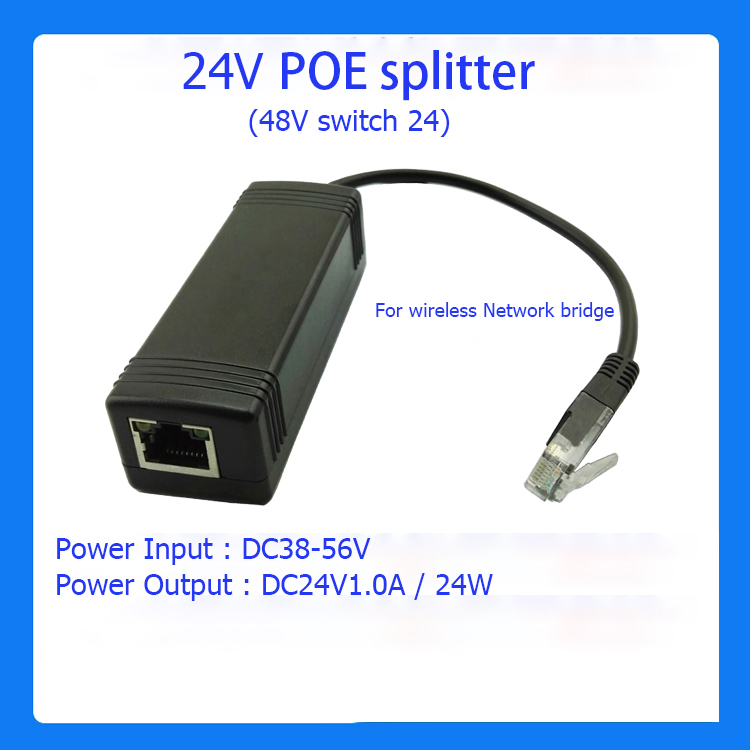

Model numberPDCA-2401F / PDCA-1201F
POE protocol IEEE802.3AT
Input voltage DC:38-56V
Output voltage DC24V1A/ DC12V2A (RJ45+RJ78-)
Transfer efficiency>95%
Power supply mode 1236/4578 power
Transmission speed 10M/100M
Transmission distance 150M
Lightning protection grade 18KV
Circuit protection Overvoltage Overtemperature protection
Temperature -  20℃ ~ 80℃
HumidityRH95% max
Size90*32*28mm +200mm (line)
Weight 60g
