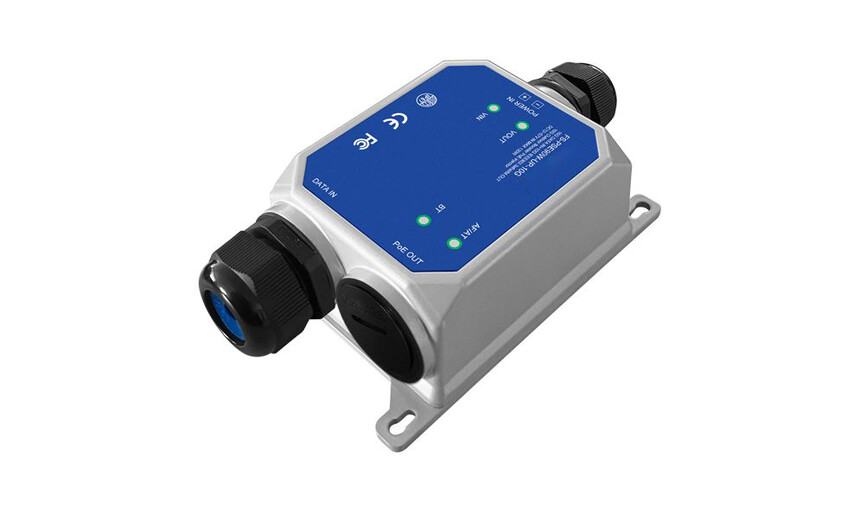

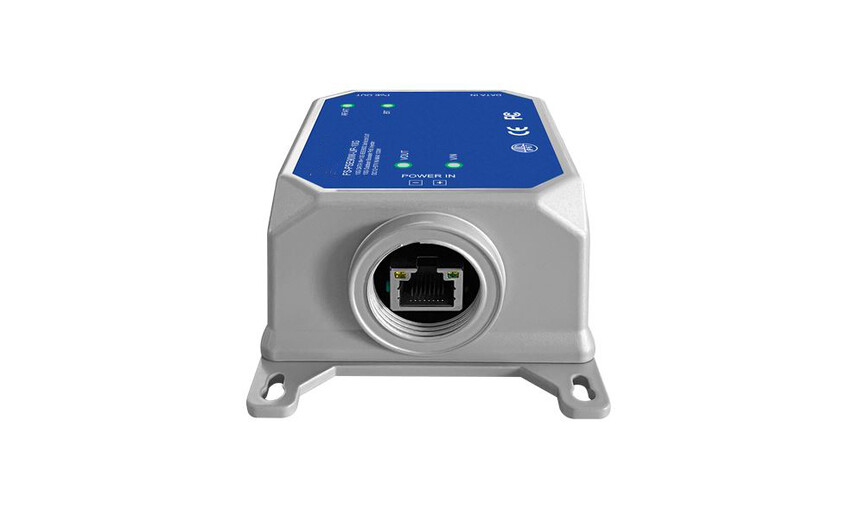

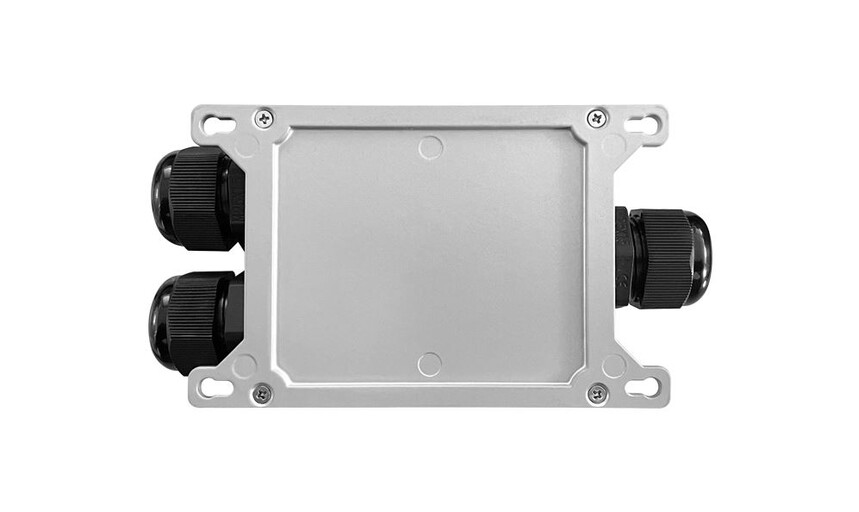

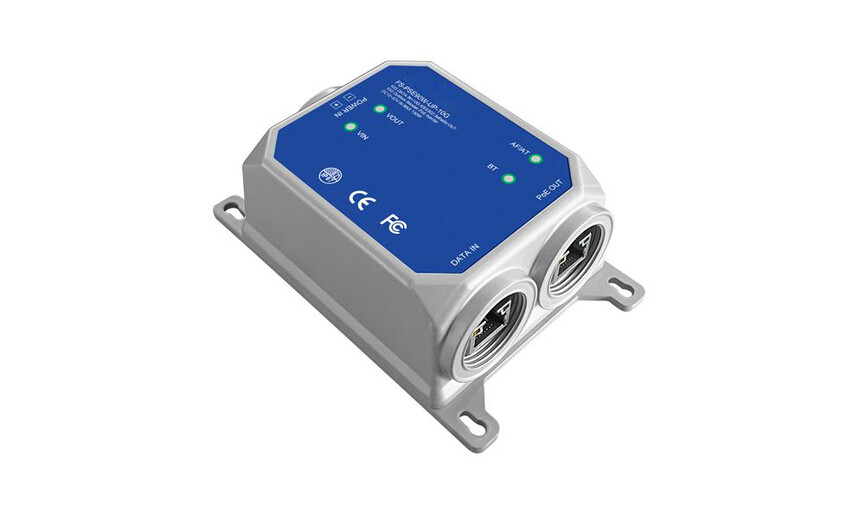

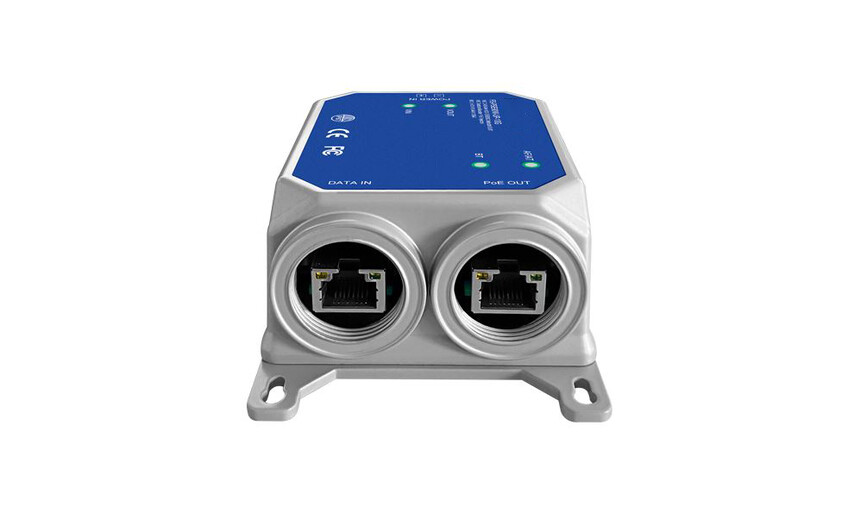

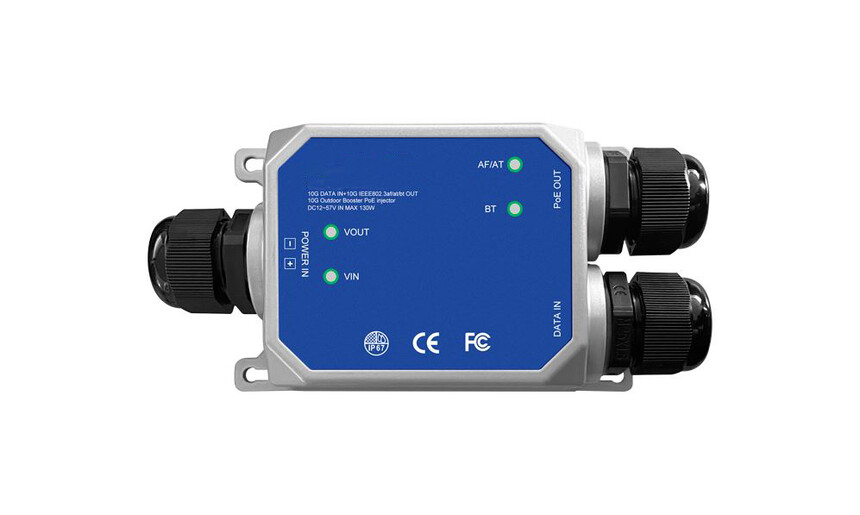

Outdoor poe extender 2 ways series

Collect
  • 商品说明

<

Model BandwidthPortPOE inPOE outDC
CAS102 series40G1XGT IN+1XGT OUT1*af/at/bt max 90W1*af/at/bt max 90W2P*3.5mm  DC48-57V IN MAX120W
1G1FE IN+2FE OUT1*af/at/bt max 90W1*af/at/bt max 90W     +1*af/at max 30W-
1G1 LD FE IN+2FE OUT1*af/at/bt max 90W1*af/at/bt max 90W     +1*af/at max 30W-
10G1GE IN+2GE OUT1*af/at/bt max 90W1*af/at/bt max 90W     +1*af/at max 30W-
10G1GT IN+2GT OUT1*af/at/bt max 90W1*af/at/bt max 90W     +1*af/at max 30W-
CASPSE series-1*10/100/1G/2.5G-1*af/at/bt max 90W2P*3.5mm  DC48-57V IN MAX120W
-1*10/100/1G/2.5G-1*af/at/bt max 90W2P*3.5mm  DC12-57V IN MAX150W
-1*10/100/1G/2.5G/5G/10G-1*af/at/bt max 90W
-1*10/100/1G/2.5G/5G/10G-1*af/at/bt max 90W2P*3.5mm  DC12-57V IN MAX150W
-1*10/100/1G/2.5G/5G/10G-1*af/at/bt max 320W2P*3.5mm  DC52-57V IN MAX325W
-1*10/100/1G/2.5G/5G/10G-Passive 12+ 36+ 45- 78- DC24V MAX 60W2P*3.5mm  DC12-57V IN MAX61W
-1*10/100/1G/2.5G/5G/10G-Passive 12+ 36+ 45- 78- DC24V MAX 120W2P*3.5mm  DC12-57V IN MAX122W
-1*10/100/1G/2.5G/5G/10G-Passive 12+ 36+ 45- 78- DC24V MAX 320W2P*3.5mm  DC12-57V IN MAX325W
CASPD series-1*10/100/1G/2.5G1*af/at/bt max 90W-2P*3.5mm  DC12V 5A max 90w out
-1*10/100/1G/2.5G/5G/10G1*af/at/bt max 90W-2P*3.5mm  DC12V 5A max 90w out
-1*10/100/1G/2.5G1*af/at/bt max 65W-2P*3.5mm  DC12V 5A max 65w out
-1*10/100/1G/2.5G/5G/10G1*af/at/bt max 65W-2P*3.5mm  DC12V 5A max 65w out
-1*10/100/1G/2.5G1*af/at/bt max 65W-2P*3.5mm  DC24V 2.5A max 65w out
-1*10/100/1G/2.5G/5G/10G1*af/at/bt max 65WPassive 45+ 78- DC24V MAX 30W2P*3.5mm  DC24V 1.5A max 30w out
