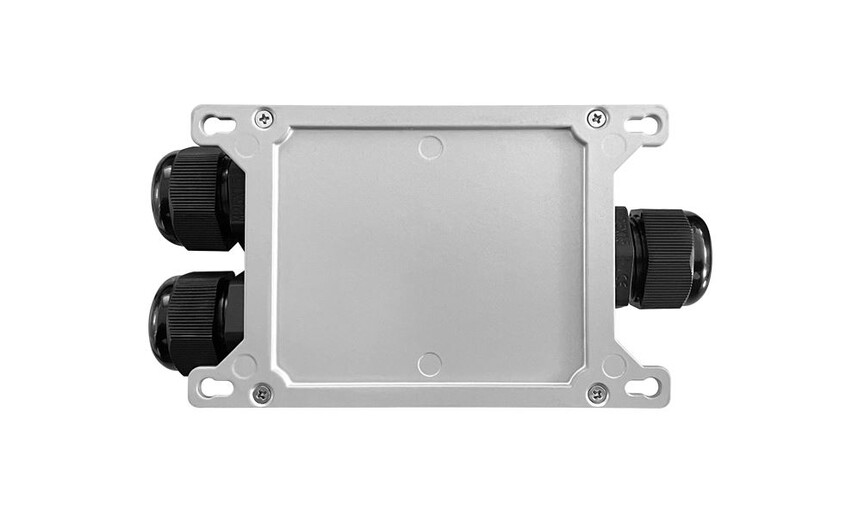

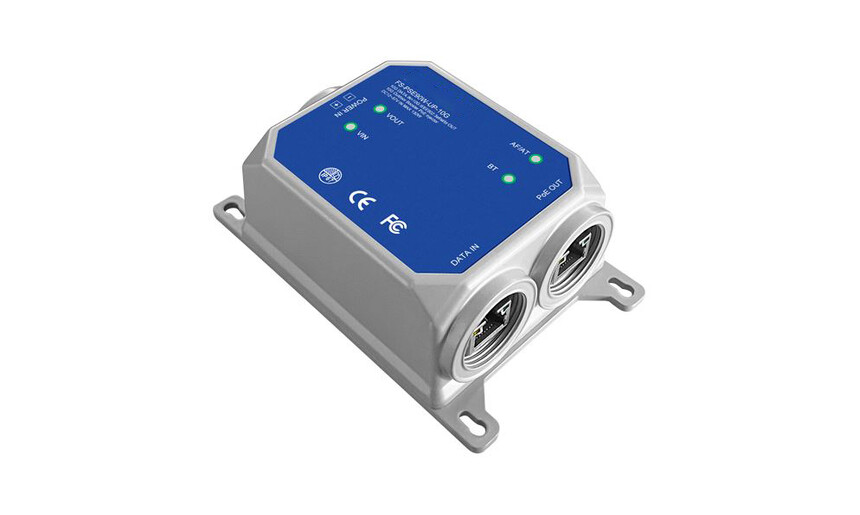

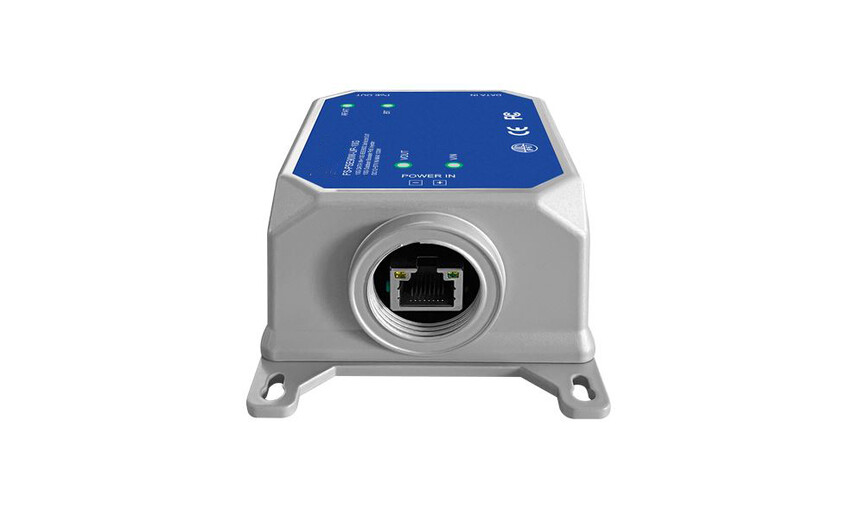

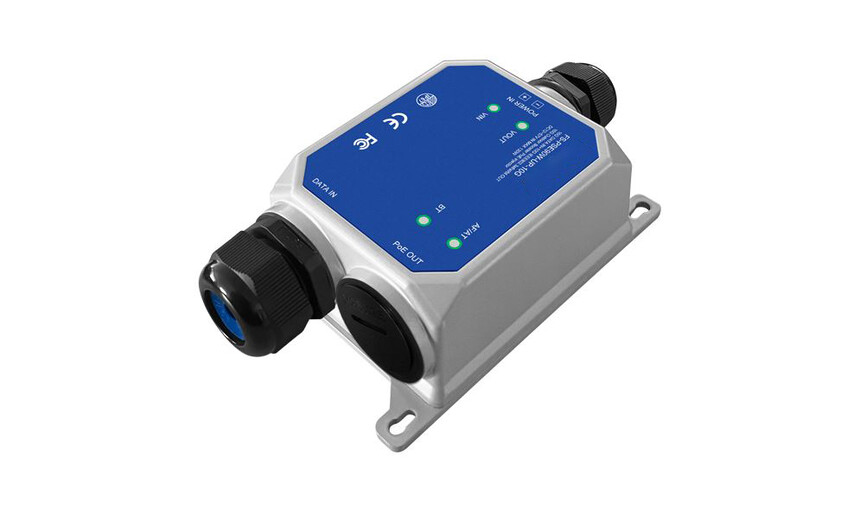

Outdoor waterproof POE injector 60W 90W 120W

Product name

Gigabit IP67 outdoor waterproof PSE injector

material

Aluminum die-casting body

Nylon waterproof joint

Waterproof grade

IP67

Wire diameter

Support network cables with a  Φ of 4-8mm

Fixed Port

1*10/100/1000/2500Base-TX  Data in

1*10/100/1000/2500Base-TX  PoE out

DC in

2P*3.5mm connection terminal

DC in V

44-57V

48-57V

48-57V

52-57V

DC in A

Max 1.4A

Max 2.1A

Max 2.5A

Max 4.7A

PoE OUT

Max 60W

Max 90W

Max 120W

Max 240W

PoE OUT Pin

12+ 45+  36- 78-

Power function

1: Support short circuit protection, if the short circuit is removed after 5 seconds, the power supply will be automatically restored

2: Support over power protection, if the function is restored after 5 seconds, the power supply will be restored

3: Support voltage anomaly indication

4: Support power load percentage indication

POE out

Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(100 meter)

2500BASE-TX ： Cat6 or later UTP(100 meter)

LED Indicator

PW: Power in led

PoE: Load power 0-100% led

1: The normal load 0-100% light is always on or flashes for 1 second

2: When overloaded, all lights flash for 1/4 second

3: All lights turn off when exceeding the working voltage

Operating Temperature/Humidity

-40～+80°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+90°C；5%～95% RH Non coagulation

Product /Packing

 size（L*W*H）

150*77*43mm

160*85*47mm

N.W/G.W（kg）

0.19kg/0.22kg

Lightning

Protection  level

6KV 8/20us；

Installation

Desktop、wall installation

Certificate

CE-EMC EN55032；CE-LVD EN62368；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
